Clinicopathologic Correlation:

Ciliary Body Leiomyoma

Clinicopathologic Correlation:

Ciliary Body Leiomyoma
Juan P. Fernandez de Castro MD,   Nasreen Syed MD
September 9, 2009

Chief Complaint: 35-year-old female complaining of blurred vision and flashing lights in the right eye.

History of Present Illness: 35-year-old female presented to her local ophthalmologist complaining of blurred vision, flashing lights and intermittent floaters in the right eye for the past week.

Past Ocular History: While pregnant 13 years ago she had two episodes of loss of vision in the left eye. They lasted 30 to 40 minutes and resolved on their own. She was diagnosed with migraine with aura.

Medical History: Cutaneous melanoma excised at age 5; it began as a large birthmark that later changed color. She also suffers from eczema.

Medications: Daily multivitamin.

Ocular Exam:

  • Visual Acuity (without correction):
    • OD—20/20
    • OS—20/20
  • Extraocular motility: Full
  • Pupils:
    • Equally reactive.
    • No afferent pupillary defect  (RAPD)
  • Intra-ocular pressure: 17mmHg OU
  • External and anterior segment examination: Unremarkable.
  • Confrontation visual fields (CVF): OD--Full; OS--Full
  • Dilated fundus exam:
    • OD—Pigmented choroidal lesion between 10 and 1 o’clock. (See drawing – Figure 1).
    • OS—Normal

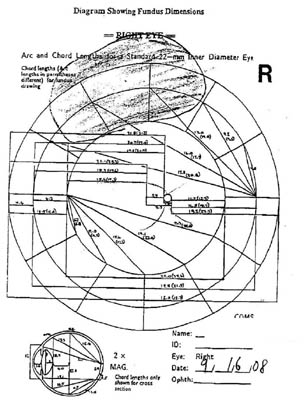

Figure 1: Pigmented choroidal lesion of the right eye between 10 and 1 o’clock OD
Ciliary body leiomyoma: mass lesions of the choroid and ciliary body

Clinical Course: This mass was diagnosed clinically as a cilio-choroidal melanoma with localized retinal detachment. Chest and abdominal CT were performed and were normal. Liver function tests were also normal. After extensive discussion of potential treatment options, the patient elected for enucleation of the right eye.

Gross Pathology: The enucleated globe was received at the F.C. Blodi Eye Pathology Laboratory. The globe was sectioned and an elevated mass was noted at the ciliary body. (See Figure 2) Upon sectioning, the tumor was cream colored and dome-shaped. (See Figure 3)
Figure 2: Elevated mass of the ciliary body
Ciliary body leiomyoma: mass lesions of the choroid and ciliary body

Figure 3: Cream colored and dome-shaped tumor
Ciliary body leiomyoma: mass lesions of the choroid and ciliary body

Histopathology: Microscopic examination revealed that the overlying basement membrane of the pigment epithelium was largely intact, there was no scleral invasion, and a small exudative retinal detachment was present posterior to the tumor. The neurosensory retina, optic nerve and uninvolved choroid were unremarkable. (Figures 4 and 5)

Figure 4: Hematoxylin-Eosin Stain, 5x
Ciliary body leiomyoma: mass lesions of the choroid and ciliary body

Figure 5: Hematoxylin-Eosin Stain, 200x
Ciliary body leiomyoma: mass lesions of the choroid and ciliary body

At higher power, fascicular bundles of spindle cells with occasional intervening bundles of collagen were noted. Cell nuclei demonstrated a vesicular chromatin pattern with occasional indistinct nucleoli and cytoplasm devoid of pigment. No mitoses were present in 40 high-power fields. Scattered lymphocytes were present. No necrosis was seen. (See Figure 6)

Figure 6: Hematoxylin-Eosin Stain
6A. Hematoxylin-Eosin Stain, 50x 6B. Hematoxylin-Eosin Stain, 300x
Ciliary body leiomyoma: mass lesions of the choroid and ciliary body Ciliary body leiomyoma: mass lesions of the choroid and ciliary body


A standard immunohistochemical panel was performed to better determine the cell of origin of this tumor.  MART-1 and HMB-45, markers for cells of melanocytic origin, were negative in tumor cells.  S100, a marker for cells of neural crest origin, was negative.  Vimentin, a marker for cells of epithelial origin, was also negative. Muscle specific actin (MSA) and smooth muscle specific actin (SMSA) were both diffusely positive in tumor cells (figure 7).

Figure 7: Immunohistochemical panel for determination of tumor cell origin
Ciliary body leiomyoma: mass lesions of the choroid and ciliary body

Diagnosis: Ciliary body leiomyoma


Ciliary body leiomyoma is a benign smooth muscle neoplasm, usually found in the ciliary body and anterior choroid (iris lesions reported). It has a strong predilection for young women.

The pathogenesis is unclear. Two hypotheses propose different tumor origins. The first one suggests that the tumor is derived from the smooth muscle layer of vessel walls, while the second one proposes the ciliary muscle itself as the tumor origin.

The original histopathologic diagnostic criteria include:

  1. Interlacing and tightly packed bundles of spindle-shaped cells with little or no collagenous stroma
  2. Oval nuclei with blunted ends
  3. Nuclei arranged in palisading pattern
  4. Cells containing a moderate amount of fibrillar eosinophilic cytoplasm
  5. Intracellular fibrils that stain with Masson trichrome or phospho-tungstic acid-hematoxylin

Other histopathologic characteristics include:

  1. Encapsulated
  2. Prominent vascularity
  3. Absence of mitotic figures or nuclear atypia
  4. Cells are outlined with reticulin stain

The old criteria for histopathological diagnosis have become less applicable with the wide use of diagnostic immunohistochemistry. Electron microscopy may also be used, but immunohistochemistry is easier to obtain, less costly and more reliable in paraffin-embedded tissue.

It is always important to exclude a leiomyosarcoma. The major differences between the two tumors are the absence of intra- or extraocular extension and the low mitotic rate of leiomyoma on histopathology.

The clinical diagnosis of ciliary body leiomyoma is often challenging.  Several clinical tests have been used in an attempt to diagnose leiomyoma. Ultrasound shows a well-defined, homogeneous lesion with wide variation in internal reflectivity and orbital shadowing behind the mass. Unfortunately these findings are not consistent or conclusive. MRI has also been used but it only shows an intraocular mass that is isointense to brain, and is of little utility in diagnosis.

Even though a leiomyoma is a benign tumor, complications may arise from local damage caused by its growth. These complications include subluxation of the lens, glaucoma and retinal detachment.

Differential Diagnosis

  • Metastasis (typically from the lung in men and breast in women)
  • Amelanotic ciliary body melanoma
  • Schwannoma (Neurilemoma), neurofibroma
  • Melanocytoma
  • Adenoma or adenocarcinoma of the pigmented or non-pigmented epithelium
  • Fuchs adenoma
  • Leiomyosarcoma
  • Medulloepithelioma
  • Hemangioma
  • Benign reactive lymphoid hyperplasia


Partial lamellar sclero-uvectomy and transscleral resection have been performed with excellent results and sparing of the eye. In some cases, the large size of the mass leaves no choice other than enucleation. The prognosis after resection of the tumor is excellent as there are no reported recurrences.

Even though rare, leiomyoma should be considered in the differential diagnosis of amelanotic uveal tumors, especially in young females and/or if it lacks typical melanoma features.

Table 1. Comparison between ciliary body leiomyoma and melanoma
Leiomyoma Melanoma

Female predilection
(16 / 17 cases)

Slight predilection for males

12–55 years, mean 30 years

Mean 55 years

Transmits light readily and can even reflect light

Relative shadow

Affects ciliary body, rarely purely in the choroid

Frequently purely in the posterior choroid

Supraciliary or suprachoroidal space

Arises from the uveal stroma



  • Extremely rare: 17 cases reported
  • No known inheritance pattern
  • Female prevalence (16/17)
  • Age: 12–55 years, mean 30 years


  • There are no specific clinical or imaging signs for intraocular leiomyoma.


  • Asymptomatic until it grows enough to affect adjacent structures.  It can present with:

    • Blurred vision
    • Floaters
    • Pain


  • Sclerouvectomy
  • Transscleral resection
  • Enucleation
  1. Shields JA, Shields CL. Observations on intraocular leiomyomas. Trans Pa Acad Ophthalmol Otolaryngol. 1990;42:945-50.
  2. Blodi FC.. Leiomyoma of the ciliary body. Am J Ophthalmol, 1950;33:939-942.
  3. Biswas J, Kumar K, Gopal L.. Leiomyoma of the ciliary body extending to the anterior chamber: Clinicopathologic and ultrasound biomicroscopic correlation. Surv Ophthalmol. 2000;44(4):336-42.
  4. Shields JA, Shields CL, Eagle RC. Observations on seven cases of intraocular leiomyoma. Arch Ophthalmol. 1994;112(4):521-8
  5. Toth J, Kerenyi A, Suveges I. Leiomyoma of the Ciliary Body and Hemangiopericytoma of the Choroid. Pathol Oncol Res. 1996;2(1-2):89-93.
  6. Richter MN, Bechrakis NE, Stoltenburg-Didinger G. Transscleral resection of a ciliary body leiomyoma in a child: case report and review of the literature. Graefes Arch Clin Exp Ophthalmol. 2003 Nov;241(11):953-7
  7. Albert DM, Jakobiec FA, eds. Principles and practice of ophthalmology, clinical practice, 2nd ed. Philadelphia: W.B. Saunders, 1999.
  8. Spencer WH, ed. Ophthalmic Pathology: An Atlas and Textbook, 4th ed. Philadelphia: W.B. Saunders Company, 1996
