Posterior capsular folds creating a Maddox rod effect following cataract surgery

Posterior capsular folds creating a Maddox rod effect following cataract surgery

Maria L. Stunkel, MS4, Anna S. Kitzmann, MD
August 7, 2014

Chief Complaint

73-year-old female presents with glare in the right eye 5 months after cataract surgery.

History of Present Illness

The patient had cataract surgery in both eyes with monofocal lens implants five months prior to presentation. She elected to undergo cataract surgery to diminish glare with lights, but notes that her glare on presentation is much worse since surgery. She complains of glare in the right eye since the first day after surgery. The glare occurs both indoors and outdoors and as a result, she is unable to drive at night. The glare does not improve when she wears her glasses. She denies any decrease in vision and feels that her vision has improved since cataract surgery, despite the worsening glare. When describing the appearance of the glare, she says it is linear and always oriented in the same direction. The line of glare points from about 2:00 to 8:00. The patient was able to illustrate this on an Amsler grid (Figure 1).

Amsler Grid

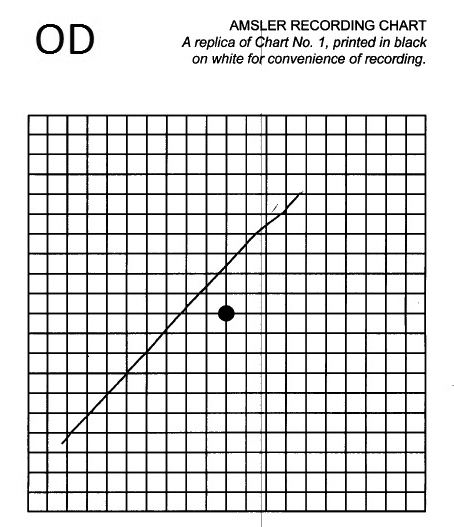

Figure 1. The patient drew the appearance of the line of glare in her right eye on an Amsler grid.

Past Ocular History

  • Status post cataract surgery with intraocular lens implant, both eyes

Past Medical History

  • Paroxysmal atrial flutter
  • Cardiomyopathy
  • Gastroesophageal reflux disease
  • Urinary urgency


Ocular medications – Refresh artificial tears four times daily to both eyes

Systemic medications – aspirin, furosemide, gabapentin, metoprolol, nabumetone, nitroglycerin, potassium chloride, pravastatin, ranitidine, and terazosin

Family and Social History


Review of Systems

A complete review of systems was performed and negative except for as mentioned in the history of present illness.


Visual acuity at distance without correction

  • Right eye (OD): 20/20 -1
  • Left eye (OS): 20/30 -2

Manifest refraction


  • -0.50 +0.75 x175, +2.75 add
  • Visual acuity with correction (distance): 20/20 -1
  • Visual acuity with glare testing: 20/25 +1


  • -0.75 +1.50 x130, +2.75 add
  • Visual acuity with correction (distance): 20/20 -1
  • Visual acuity with glare testing: 20/25 +1

Ocular motility:

Full in both eyes (OU)

Intraocular Pressure (IOP) by applanation:

14 mmHg OD, 14 mmHg OS


Equally, but minimally reactive. No relative afferent pupillary defect was found.

Slit Lamp Exam


  • Eyelids: Mild dermatochalasis
  • Conjunctiva: Clear and quiet without injection
  • Cornea: Clear
  • Anterior chamber: Deep and quiet
  • Iris: Normal architecture
  • Lens: Posterior chamber intraocular lens; one long fold in the posterior capsule from about 2:00 to 8:00
  • Vitreous: Posterior vitreous detachment


  • Eyelids: Mild dermatochalasis
  • Conjunctiva: Clear and quiet without injection
  • Cornea: Clear
  • Anterior chamber: Deep and quiet
  • Iris: Normal architecture
  • Lens: Posterior chamber intraocular lens; no posterior capsular opacification; no folds in the posterior capsule
  • Vitreous: Posterior vitreous detachment

Dilated Fundus Exam


  • Disc: Peripapillary atrophy; slightly tilted disc
  • Cup to disc ratio: 0.5
  • Macula: Normal
  • Vessels: Normal
  • Periphery: Normal


  • Disc: Peripapillary atrophy; tilted disc
  • Cup to disc ratio: 0.7
  • Macula: Normal
  • Vessels: Normal
  • Periphery: Normal

 Slit lamp photo demonstrating posterior capsluar folds

 Physician Drawing of the fold

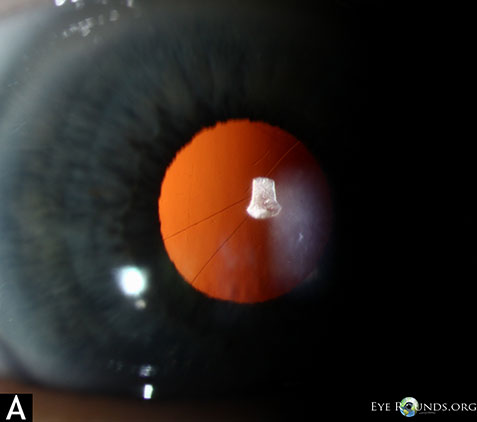

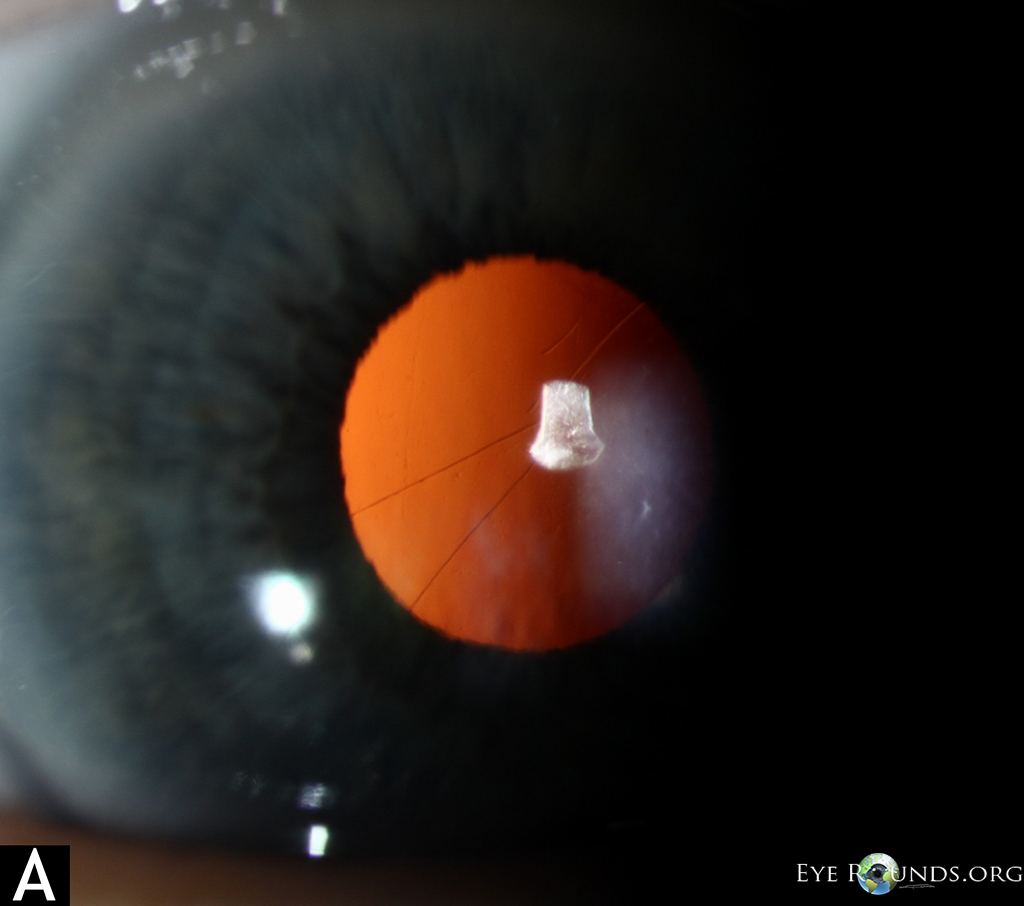

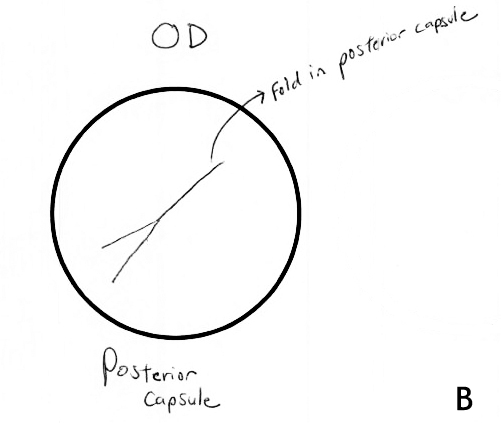

Figure 2.(A) Slit lamp photo of the right eye demonstrating posterior capsular folds. (B) Physician drawing of the fold in posterior capsule as seen through the slit lamp. Note the similarity between the direction of the fold and what the patient drew in on Amsler grid (Figure 1).


The patient describes a line of glare, which is causing a Maddox rod effect, and corresponds to the fold in the posterior capsule in the right eye. The option of a neodymium-doped yttrium aluminum garnet (Nd:YAG) laser posterior capsulotomy on the right eye was discussed with the patient, and she elected to proceed with this laser procedure.

One month after Nd:YAG laser posterior capsulotomy, the patient noted that the glare was not as bothersome as it was before undergoing the procedure. On slit lamp examination of the right eye, there was a central opening in the posterior capsule. The patient continues to notice some streaks of glare, but it is much less significant. Overall, she is pleased with the visual outcome following the Nd:YAG capsulotomy.


Clinical findings

The Maddox rod was developed in 1890 and is used in clinical ophthalmology for the detection of heterophoria [1]. The Maddox rod is constructed with multiple plastic cylindrical rods lined up successively, where incident light is spread to form a streak perpendicular to the orientation of the rods. Thus, the case described here represents a Maddox rod effect, where the posterior capsule folds served as a cylindrical lens through which the incident light creates a bothersome streak observed 90 degrees from the aberration. Holladay et. al [2] similarly reported the presence of annoying light streaks and glare following cataract extraction and attributed the symptoms to high plus cylinders within the patient's optical system. Although the visual aberration in our case was identified at the posterior capsule, cylindrical aberrations anywhere in the visual axis may become symptomatic. Choi [3] reported similar Maddox rod effect causing symptomatic light streaks or starburst from laser in situ keratomileusis (LASIK) flap striae.


Due to the acute onset of complaints as early as the day of surgery, symptomatic folds may be an intraoperative phenomenon or likely manifest early in the postoperative period and progress in the process of capsular opacification and contraction. Capsular opacification originates from viable lens epithelial cells left behind after removal of the nucleus and cortex in cataract surgery. Wrinkling and contraction of the posterior capsule is exacerbated by the ability of the lens epithelial cells to undergo metaplasia and conversion into myofibroblasts. A matrix of fibrous and basement membrane collagen is produced by myofibroblast and resulting symptoms of glare and distortion of vision can be due to the contraction of this collagen matrix [4].

Factors that increase the rate of posterior capsular opacification include [4]

  • Age of the patient
  • History of intraocular inflammation
  • Presence of pseudoexfoliation syndrome
  • Small size of the capsulorrhexis
  • Poor quality of intraoperative cortical cleanup
  • Capsular fixation of the implant
  • Lens implant design (i.e. square-edge optic)
  • Lens surface modification
  • Time elapsed since surgery
  • Presence of intraocular silicone oil

Longitudinal folds within the posterior capsule have been observed intraoperatively and may play a role in the symptomatic glare and visual distortion after cataract removal. The presence of posterior capsule folds occurs after lens implantation. The folds are oriented along the longitudinal axis of the intraocular lens (IOL) as a result of the disparity in size of the IOL and capsular bag [5]. Vasavada [6] and Durak [7] made observations of posterior capsule folds that led to the belief that a "longitudinal striae sign" (presence of the folds) was an indicator of complete removal of ophthalmic viscosurgical device (OVD). Blomquist [5], however, noticed that these folds were often present before the complete removal of OVD and that the folds were more likely a function of IOL design and haptic material. The presence of posterior capsule folds and opacification seems to be related to the design and material of intraocular lens implant. For example, the presence of posterior capsular folds appears in 43% of patients with an Alcon Acrysof MA60BM lens which is a 3-piece polymethylmethacrylate (PMMA) lens and only 2% with an Alcon AcrySof SA30AL lens which is a single-piece acrylic lens [5]. The 3-year incidence of opacification has been reported at 56% for PMMA, 40% for silicone, and 10% for acrylic material [8].


Nd:YAG laser is a standard procedure for treating secondary opacification of the posterior capsule [4]. Use of the Nd:YAG laser for opening of the posterior capsule is relatively safe and has a success rate upwards of 95% [4]. The need for Nd:YAG laser capsulotomy varies depending on the chosen lens implant. A postmortem study reported the prevalence of Nd:YAG capsulotomy of 0.9% for acrylic intraocular lenses (IOLs), 12-21% for silicone IOLs, and 27-33% for PMMA IOLs [9]. Use of the Nd:YAG capsulotomy is indicated for glare caused by posterior capsule opacification or wrinkling encroaching on the visual axis in a patient with symptomatically decreased best-corrected visual acuity and otherwise clear media [4].


Fold in the posterior capsule causing a Maddox rod effect with visually significant glare


  • Acquired following cataract surgery
  • No specific predilection towards:
    • Gender, race
    • Laterality
    • Axial length of eye
    • Intraocular lens power
  • Type of intraocular lens used may play a role


  • Line of glare viewed by the patient which is 90 degrees incident to the capsular fold
  • View of the capsular fold by the physician will match that which the patient describes/draws


  • Bothersome glare, specifically a line of glare, which always has the same orientation
  • Glare may impair patient's ability to drive at night


  • Nd:YAG capsulotomy will improve symptoms, but may not remove all symptoms of glare


  • Spectacle or contact lens aberration
  • Diffuse posterior capsular opacification
  • Corneal flap striae (i.e. following LASIK)
  • A mar or defect in the intraocular lens
